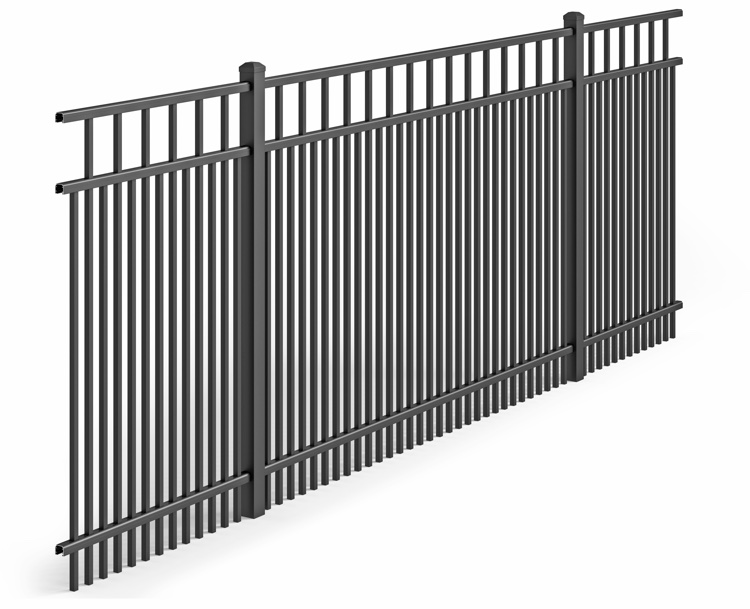

UAF-201 Flat Top
UAF-201 Flat Top
With 1-5/8" Residential Spacing or 1-1/2” Commercial Spacing
This three-rail configuration features tighter picket spacing. Available in Residential Series, Residential Series Premium, Commercial Series, and Commercial Series Premium. Premium grades have a reinforced double-wall rail with hidden fasteners.
Standard Sections are 6' wide x 3', 3-1/2’, 4', 4-1/2’, 5' or 6’ high. Sections come fully assembled. Other widths and heights may be available. Ask your representative for details...
Visualize in Design StudioAdditional Information
Fence & Gates Brochure
Ultra Aluminum Fence Specifications
Details
Pickets: Residential 5/8'' square x .050''; Commercial 3/4” square x .055"
Spacing Between Pickets: 1-5/8”; Commercial 1-1/2”
Fasteners: Stainless steel
Horizontal Rails: Residential 1 1/8'' x 1'' with .080 side walls and .062 top walls; Commercial 1-1/4” x 1-3/8” with .088 side walls and .065 top walls
Posts: Residential 2'' square x .060, .080, or .125; 2-1/2” square x .100; Commercial 2'' square x .080, or .125; 2-1/2” square x .100; and 3” square x .125
All posts include standard caps
Alloy: High-strength Ultrum™ 6005-T5 alloy, min. strength 35,000 PSI
Finish: Powercoat™. When applied, Powercoat™ finish is twice the thickness and hardness of a typical acrylic, baked enamel or “wet paint” finish, making it more durable, fade-resistant and scratch-resistant than other coatings.
Residential CAD Drawings
UAF-201 2 Rail
UAF-201 FLAT TOP FLUSH BOTTOM RESIDENTIAL 6X4 2 RAIL
UAF-201 FLAT TOP STD BOTTOM RESIDENTIAL 6X4 2 RAIL
UAF-201 3 Rail
UAF-201 FLAT TOP FLUSH BOTTOM RESIDENTIAL 6X4 3 RAIL
UAF-201 FLAT TOP STD BOTTOM RESIDENTIAL 6X4 3 RAIL
UAF-201 4 Rail
UAF-201 FLAT TOP FLUSH BOTTOM RESIDENTIAL 6X4 4 RAIL
UAF-201 FLAT TOP STD BOTTOM RESIDENTIAL 6X4 4 RAIL
Colors
Features
Superior Product Design for Ultra-Strength
HIGH-STRENGTH ALLOY
Ultra's high strength, aluminum alloy is as strong as steel, but will never rust. Our 6005-T5 alloy has a minimum strength of 35,000 psi.
LIMITED LIFETIME
WARRANTY
Ultra Aluminum™ products are warranted against defects in workmanship and materials.
WELDED
CONNECTIONS
All gates are fastened and 100% welded at all connections and joints; designed to stand up to the rigors of everyday use.
POWDER COATED
FINISH
Ultra's powder coated finish meets AAMA 2604 specifications, allowing us to produce
a high-quality, long-lasting finish.
20% MORE ALUMINUM
20% more aluminum in all our rails, with a full 8 ribs inside. Maintains Ultra-Strength even when punched for pickets.
MORE DETAIL
Our pinched spear tops show more detail than most competitors--the more pronounced ribs add structural integrity as well as architectural appeal.
