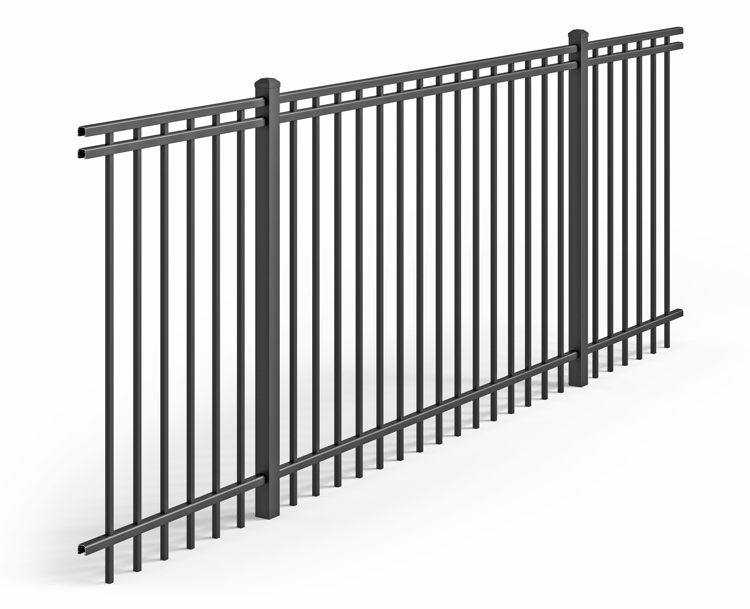

UAB-200 Flat Top Flush
UAB-200 Flat Top Flush
This smart-looking 3-Rail style is BOCA-code approved for pool enclosures. Available in Residential Series and Residential Series Premium (not offered in Commercial grade). The Residential Premium style has a reinforced double-wall rail for safety.
Standard sections are 6' wide x 4', high. Sections come fully assembled. Other widths and heights may be available. Ask your representative for details...
Visualize in Design StudioAdditional Information
Fence & Gates Brochure
Ultra Aluminum Fence Specifications
Details
Pickets: Residential 5/8'' square x .050"
Spacing Between Pickets: 3 13/16”
Fasteners: Stainless steel
Horizontal Rails: 1 1/8'' x 1'' with .080 side walls and .062 top walls. The lower rail can be flush, so that no pickets are exposed at the bottom of the fence.
Posts: 2'' square x .060, .080, or .125; 2-1/2” square x .100;
All posts include standard caps
Alloy: High-strength Ultrum™ 6005-T5 alloy, min. strength 35,000 PSI
Finish: Powercoat™. When applied, Powercoat™ finish is twice the thickness and hardness of a typical acrylic, baked enamel or “wet paint” finish, making it more durable, fade-resistant and scratch-resistant than other coatings.
Colors
Features
Superior Product Design for Ultra-Strength
HIGH-STRENGTH ALLOY
Ultra's high strength, aluminum alloy is as strong as steel, but will never rust. Our 6005-T5 alloy has a minimum strength of 35,000 psi.
LIMITED LIFETIME
WARRANTY
Ultra Aluminum™ products are warranted against defects in workmanship and materials.
WELDED
CONNECTIONS
All gates are fastened and 100% welded at all connections and joints; designed to stand up to the rigors of everyday use.
POWDER COATED
FINISH
Ultra's powder coated finish meets AAMA 2604 specifications, allowing us to produce
a high-quality, long-lasting finish.
20% MORE ALUMINUM
20% more aluminum in all our rails, with a full 8 ribs inside. Maintains Ultra-Strength even when punched for pickets.
MORE DETAIL
Our pinched spear tops show more detail than most competitors--the more pronounced ribs add structural integrity as well as architectural appeal.
