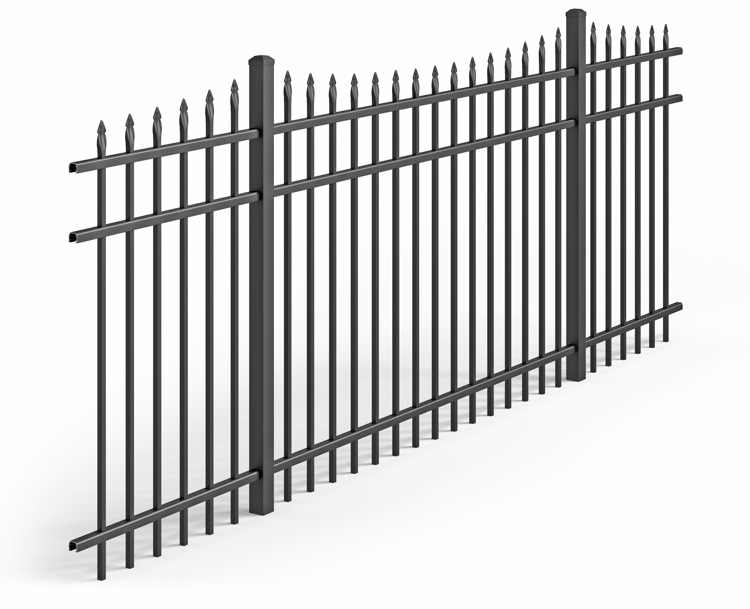

UAS-300 Concave Spear Top
UAS-300 Concave Spear Top
Concave spear formation with industrial strength equals maximum security. It's available in Industrial Series and Industrial Series Premium grades. Our Premium grades have a reinforced double-wall rail with hidden fasteners.
Standard Sections are 6' wide x 3', 4', 5', or 6' high. Sections come fully assembled. Custom width or heights - 7', 8', 9', 10', 11', and 12'- are available.
Visualize in Design StudioAdditional Information
Industrial Fence Brochure
Ultra Aluminum Fence Specifications
Details
Pickets: 1" square x .062 wall
Spacing Between Pickets: standard 4" and optional 1-1/2"
Fasteners: Stainless steel
Horizontal Rails: 1-5/8" x 1-5/8" with .100" side walls and .070" top walls
Posts: 2-1/2" square x .100 wall; 3" square x .125 wall. All posts include standard caps.
Alloy: High-strength UltrumTM 6005-T5 alloy, min. strength 35,000 PSI
Powercoat™ Finish: When applied, Powercoat™ finish is twice the thickness and hardness of a typical acrylic, baked enamel or "wet paint" finish, making it more durable, fade-resistant and scratch-resistant than other coatings.
Colors
Features
Superior Product Design for Ultra-Strength
HIGH-STRENGTH ALLOY
Ultra's high strength, aluminum alloy is as strong as steel, but will never rust. Our 6005-T5 alloy has a minimum strength of 35,000 psi.
LIMITED LIFETIME
WARRANTY
Ultra Aluminum™ products are warranted against defects in workmanship and materials.
WELDED
CONNECTIONS
All gates are fastened and 100% welded at all connections and joints; designed to stand up to the rigors of everyday use.
POWDER COATED
FINISH
Ultra's powder coated finish meets AAMA 2604 specifications, allowing us to produce
a high-quality, long-lasting finish.
20% MORE ALUMINUM
20% more aluminum in all our rails, with a full 8 ribs inside. Maintains Ultra-Strength even when punched for pickets.
MORE DETAIL
Our pinched spear tops show more detail than most competitors--the more pronounced ribs add structural integrity as well as architectural appeal.
